    Asona Triton Cloud™

    Triton Cloud™ panels are made with a proprietary edge wrapped glass fibre, high sound absorbing acoustic panel faced with either a Sonatex™ glass mat composite acoustic facing, woven glass fabric or wrapped in fabric.

    Application:
    Education
    Hospitality
    Commercial
    Recreation
    Form:
    Clouds
    Direct Fix
    Fire Group:
    Group 1-S
    Group 2-S
    NRC Sound Absorption:
    1.00
    Size:
    Thickness: 25, 40, 50, 75, 100mm.
    Width: 600, 900, 1000 ,1200mm subject to finish selection.
    Length: 600, 900, 1000, 1200, 2000, 2400, 2700, 3000mm.
    Made in NZ
    Greentag
    Short Lead Time
    Colour / Finish
    Request Info/Spec Request Sample
    Description
    Specifications
    Downloads

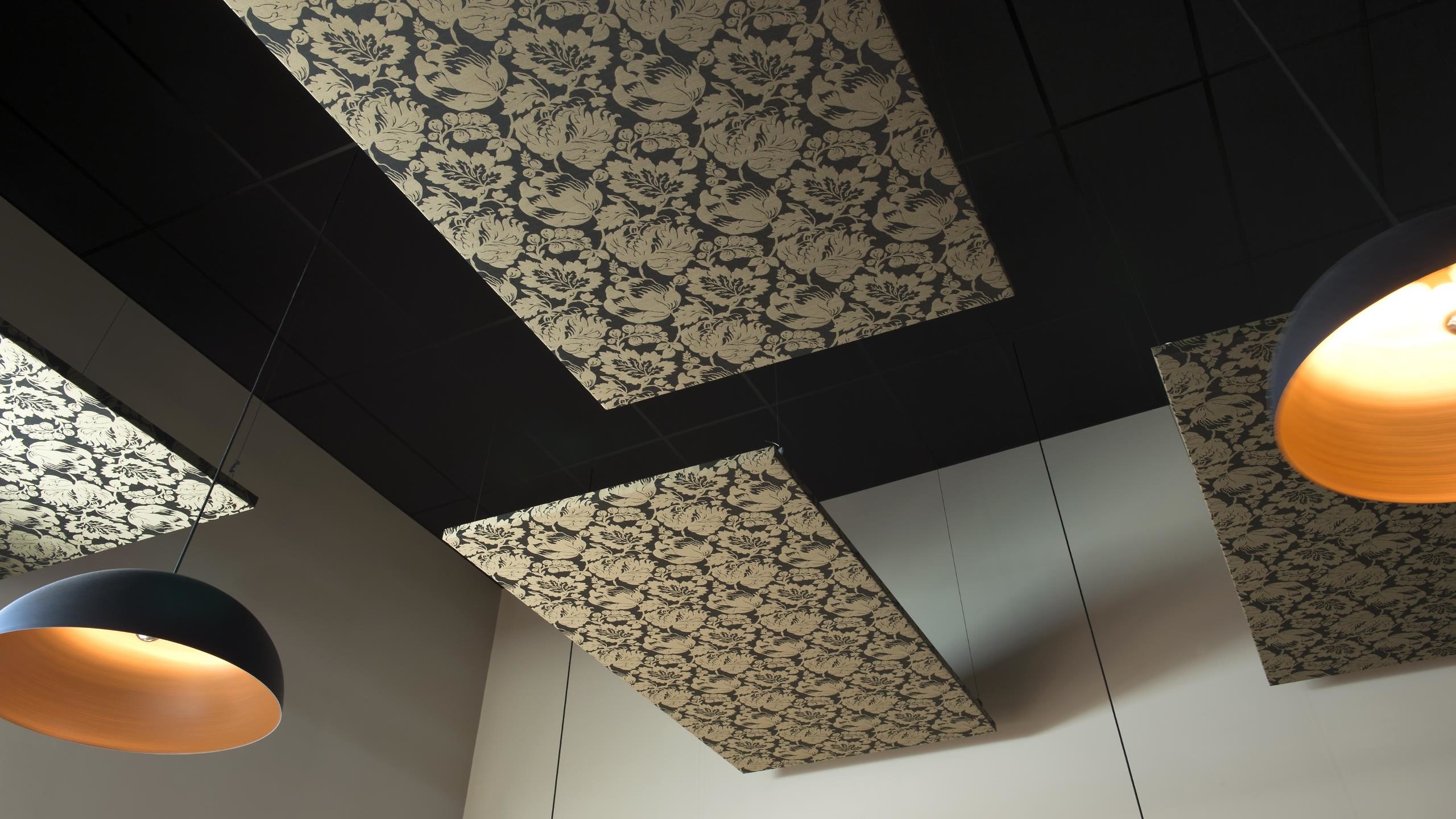

    Triton Cloud™ panel is designed as a free floating or direct fixed acoustic ceiling panel. Ideal for call centres, offices, corridors, schools, halls, gymnasiums, cafes.

    Glass fibre core provides very high sound absorption, NRC 1.00, ISO 11654 class A, αW 1.0.
    Clean frameless look with wrapped edges eliminates unsightly edge framing common with other panels.
    Dimensionally stable, rigid finish, no sag in hot conditions
    Light weight for seismic design advantage
    Easy to work on site using standard tools
    Application:
    Education
    Hospitality
    Commercial
    Recreation
    Form:
    Clouds
    Direct Fix
    Fire Group:
    Group 1-S
    Group 2-S
    NRC Sound Absorption:
    1.00
    Size:
    Thickness: 25, 40, 50, 75, 100mm.
    Width: 600, 900, 1000 ,1200mm subject to finish selection.
    Length: 600, 900, 1000, 1200, 2000, 2400, 2700, 3000mm.

    Composition

    Manufactured in New Zealand, from bio-soluble glass fibre core, concealed metal reinforced edges or frameless, wrapped in 2 ply Sonatex™ glass mat composite finish, woven glass fabric or fabric wrapped.

    Technical Datasheets

    Triton Cloud™
    Drawings

    Triton Cloud™ Suspended Ceiling Installation

    Triton Cloud™ Wall Mounting - Direct Fixed

    Triton Cloud™ 50 Panel Direct Fix

    Triton Cloud™ 50 VG Edge Panel Direct Fix

    Triton Cloud Wall Fix Detail Options

    Triton Cloud 50 VG Edged Panel Direct Fix - Construction & Installation Details

    Triton Cloud 50 Panel Direct Fix - Construction & Installation Details

    Triton Cloud Wall Fix Detail Options II

    Trton Cloud Direct Fix Detail Options

    Triton Cloud Standard Detail
    Installation Guides

    Triton Cloud™ Installation Guides
