    Asona Triton 75™

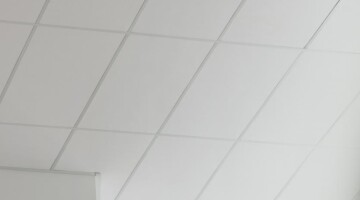

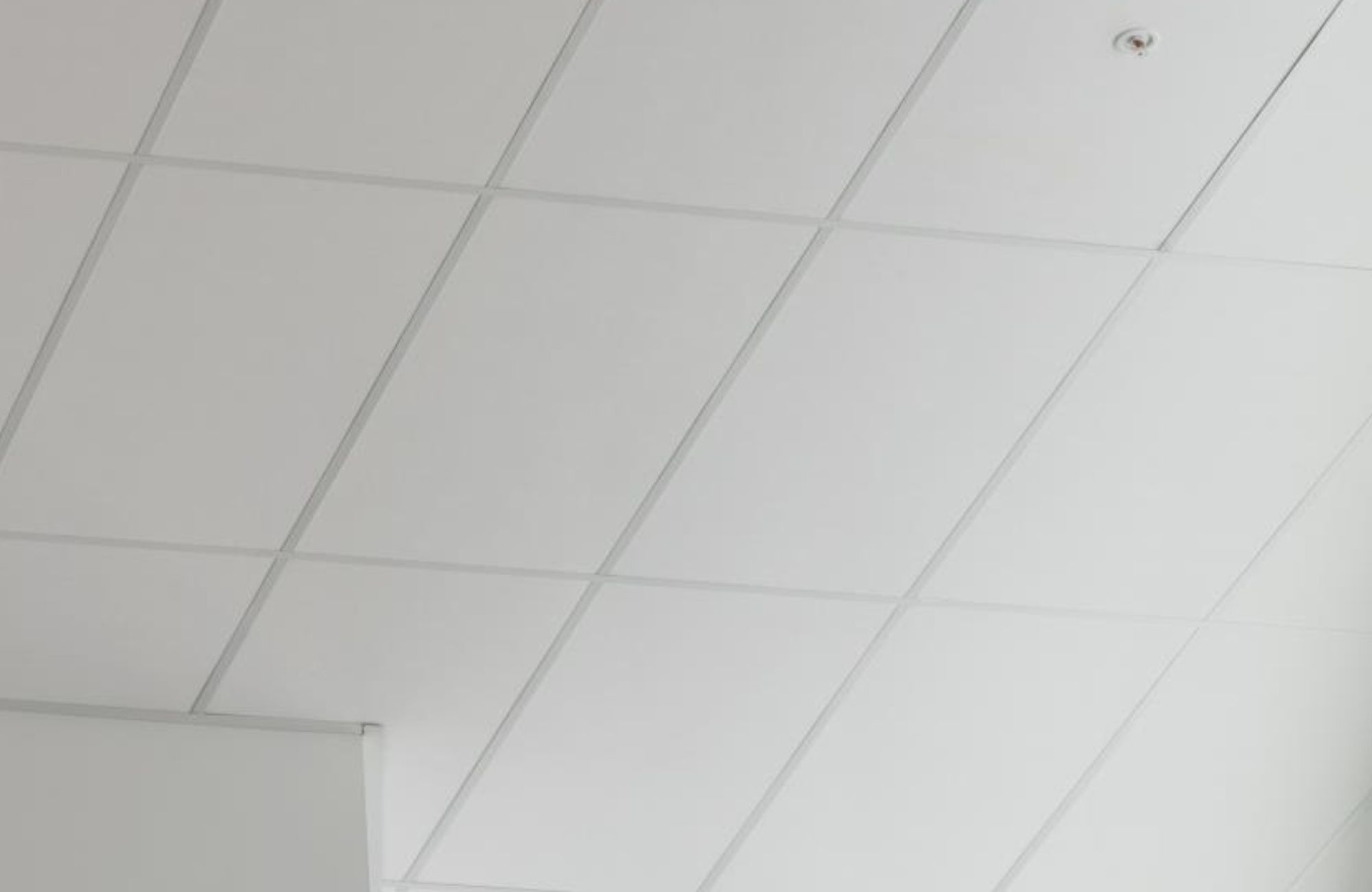

    Triton 75™ is a made in NZ 75 mm thick high sound absorbing and thermal insulating ceiling panel. Panels are available in a wide range of decorative finishes and are designed to provide R2.2 thermal insulation and exceptional low, mid, and high frequency sound absorption.

    Application:
    Education
    Commercial
    Healthcare
    Form:
    Grid & Tile
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    1.05
    Size:
    75 x 600 x 1200mm
    75 x 1200 x 1200mm
    75 x 1200 x 2400mm
    Made in NZ
    Greentag
    Short Lead Time
    Colour / Finish
    Perforation
    Request Info/Spec Request Sample
    Description
    Specifications
    Downloads

    Triton 75™ is ideal for thermal and acoustic upgrade of classrooms, halls and applications that require control of low frequency reverberation such as music rooms, recording studios, audiology testing rooms.

    75 mm thick for ultra-high sound absorption especially at low frequency, NRC 1.05, ISO class A, αW 1.0.
    Packaging take back and reuse scheme available (NZ only).
    R2.2 thermal insulation rating, ideal for retrofits.
    Fire Group 1-S.
    Broad range of plain Sonatex™ and perforated Sonaris™ acoustic laminate finishes for design flexibility.
    Made in NZ for short lead times including replacement parts.
    Product stewardship Renew and Reuse program available.
    Contains 80% recycled glass waste, low VOC.
    GreenTag certified, class A.
    Durable and dimensionally stable in high humidity.
    Light weight for seismic, easy to work and trim.
    Large panels 2400 x 1200 mm, direct fix with frame.
    Application:
    Education
    Commercial
    Healthcare
    Form:
    Grid & Tile
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    1.05
    Size:
    75 x 600 x 1200mm
    75 x 1200 x 1200mm
    75 x 1200 x 2400mm

    Composition

    Manufactured from 48 kg/m³ bio-soluble glass wool absorber, 320 gsm Sonatex™ / Sonaris™ laminate finish. Made in NZ.

    Technical Datasheets

    Triton 75™
    Drawings

    Triton 75™ Direct Fix

    Triton 75™ Floating Island with Exposed Grid

    Triton 75™ Recessed Downlight

    Triton 75™ Acoustic Panel Cover Join Options

    Triton 75™ Flush Ceiling Join Details

    Triton 75™ Penetration Details & Services Cavity

    Triton 75™ Hip Junction Details

    Triton 75™ Raking Ceiling Long Section Details

    Triton 75™ Insulated Roof Lining
