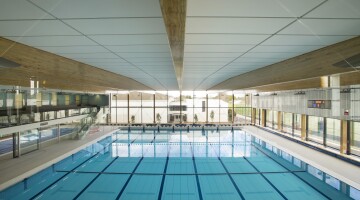

  • St Cuthberts Girls School swimming pool complex ceiling showing Triton Cloud pool panels installed

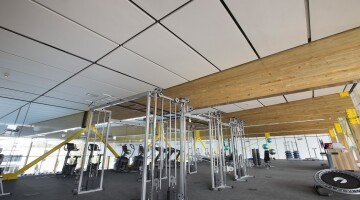

  • St Cuthberts Girls School swimming pool complex ceiling showing Triton Cloud pool panels installed in the gym area
  • Norman Kirk Memorial Pool showing a detailed section of Triton Cloud Pool panels installed
  • St Cuthberts Girls School swimming pool complex ceiling showing a detail section of the Triton Cloud pool panel installed
  • St Cuthberts Girls School swimming pool complex ceiling showing Triton Cloud pool panels installed
  • St Cuthberts Girls School swimming pool complex ceiling showing Triton Cloud pool panels installed
  • Otahuhu Recreational Precinct - Triton Pool ceiling panels
Triton Pool™ Panel
Triton Pool™ panel is a proprietary high sound absorbing acoustic panel designed specifically for swimming pool ceilings and high-up wall applications. The panels have an acoustic core with a concealed aluminum frame and is faced & edge wrapped in Sonatex™ glass mat composite finish which has been treated with a silicone water repellent spray. The panels are also foil membrane backed for resistance against condensation and moisture.
Application
Triton Pool™ panel is designed as a free-floating acoustic ceiling panel or as a direct fixed ceiling & wall panel. Specifically designed for swimming pools and other moisture laden environments.
Composition
Manufactured from bio-soluble 85% recycled glass fibre core with aluminum reinforced edges and wrapped in 2 ply Sonatex™ glass mat composite finish which has been sprayed with silicone water repellent. Panels are foil membrane backed for resistance against condensation and moisture.

Benefits

50 mm thick glass fibre core provides very high sound absorption, NRC 1.00, ISO 11654, αW 1.0.
High light reflectance in standard white, colours also available.
Foil membrane backed to control condensation.
Low embodied energy, 85% recycled content.
GreenTag certified / Level A (Sonatex, Frameless, Aluminium Edge), Level B (Sonatex, Frameless, Steel Edge), Level C (certified fabric ranges only).
Clean, crisp, frameless look with wrapped edges.
Corrosion resistant, concealed aluminium frame.
Water repellent silicon treated facing, perfect for swimming pool environments.
Dimensionally stable in high humidity.
Available in standard or custom sizes.

Technical Drawings

Triton Pool™ Panell Installation Guide

Finishes

Sonatex Colour Range

Datasheets

Triton Pool™ Panel
